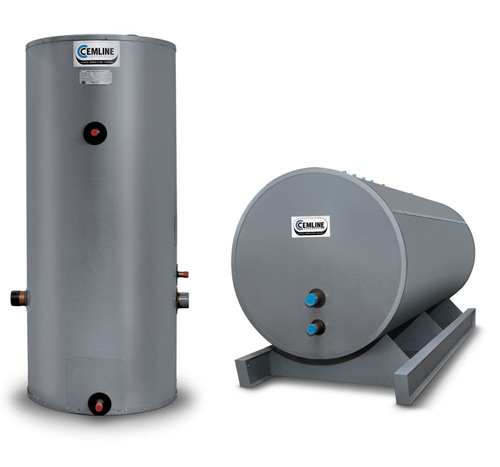

Steel Tanks
Sizing CEMLINE Steel Tanks are manufactured in a wide range of sizes. Tank diameter is the outside diameter and length refers to the overall tank length. Material CEMLINE tanks are normally constructed of pressure vessel quality carbon steel. Stainless Steel in grades 304 or 316 and 90:10 CuproNickel can be furnished. Consult factory for other materials. Exterior CEMLINE Steel Tanks are normally furnished with factory primed exterior. Special paints and coatings are available upon request.
|
Paint Coatings CEMLINE tanks can be furnished with interior or exterior coatings to meet customer specifications. Construction CEMLINE Steel Tanks are manufactured in strict accordance with ASME code requirements and National Board Registration. Non-Code tanks are also available. Working Pressure CEMLINE Steel Tanks can be built in accordance with working pressures designed to suit particular jobs. Tanks are usually built 125 psig working pressure, but tanks with working pressure from 0 to 500 psig can be provided. Galvanizing CEMLINE tanks through 60" diameter can be hot dip galvanized at customer request. |
![]() |
![]() |
![]() |
SIZING |
BROCHURES |
DRAWINGS |

Sizing
CEMLINE Steel Tanks are manufactured in a wide range of sizes. Tank diameter is the outside diameter and length refers to the overall tank length.
Material
CEMLINE tanks are normally constructed of pressure vessel quality carbon steel. Stainless Steel in grades 304 or 316 and 90:10 CuproNickel can be furnished. Consult factory for other materials.
Exterior
CEMLINE Steel Tanks are normally furnished with factory primed exterior. Special paints and coatings are available upon request.
Paint Coatings
CEMLINE tanks can be furnished with interior or exterior coatings to meet customer specifications.
Construction
CEMLINE Steel Tanks are manufactured in strict accordance with ASME code requirements and National Board Registration. Non-Code tanks are also available.
Working Pressure
CEMLINE Steel Tanks can be built in accordance with working pressures designed to suit particular jobs. Tanks are usually built 125 psig working pressure, but tanks with working pressure from 0 to 500 psig can be provided.
Galvanizing
CEMLINE tanks through 60" diameter can be hot dip galvanized at customer request.
![]() |
![]() |
![]() |
Threaded Openings NPT threaded openings are furnished as required. Tanks are built with the location and size of the openings to suit customer requirements. | Flanged Openings Flanged openings are normally ANSI standard for 150#, 300#, 600#, and specially drilled flanges can be furnished and best home vpn | Groove-End Connections Groove- end connections are furnished as required. 6” and below are schedule 40 pipe, 8” and above are schedule 30 pipe. |
![]() |
If you're struggling to write an essay on "12 Angry Men", consider seeking help from a paper writing service. With the assistance of a professional writer, you can ensure that your essay is well-written, well-researched, and properly formatted. However, if you're determined to write your essay on your own, there are several steps that you can follow to ensure its success.
By following these steps, you can write a well-organized and effective essay on "12 Angry Men". If you need additional support or guidance, consider seeking the assistance of a paper writing service to help you achieve your academic goals. |
Saddles 24” through 36” R1 = Tank radius (1/2 diameter) 42” through 96” R2 = Tank radius (1/2 diameter) Note: Normally two saddles are used on tanks up to 16’ length. Three saddles over 16’ tank length. |
![]() |
Supports for Pipe Legs Most popular type of vertical support-Allows installer to level to fit floor by adjusting pipe nipples. |
![]() |
Angle Legs Tanks can be furnished with three or four angle legs. |
![]() |
Ring Base Normally used with air receivers-not recommended for water tanks as external corrosion can occur in ring. Note: Outside diameter of ring is 6” less than diameter of tank. |
![]() |
